MH Tipping Cylinder MHE191-5-6180

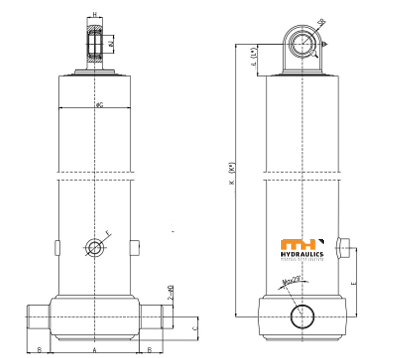

Heavy-Duty Long-Stroke Hydraulic Tipping Cylinder – 6180mm Stroke

Built for the heaviest lifting tasks, this hydraulic tipping cylinder with a massive 6180mm stroke is ideal for long-body dump trucks, off-road tippers, and special-purpose trailers. With a working pressure of 200 bar and a tipping capacity of up to 79 tons, it offers unmatched power and reach.

• Stroke: 6180 mm

• Maximum Pressure: 200 bar

• Oil Volume: 122L (extend) / 117L (retract)

• Cylinder Weight: 305 kg

• Tipping Capacity: 45 to 79 tons

Key Features:

• Designed for ultra-heavy-duty applications

• Extra-long stroke for maximum reach and lift angle


• Ideal for mining, construction, and large material handling fleets

Part of our renowned RHINO Series, this cylinder is engineered for extreme conditions and high-performance operations.

📍 Now in stock at HFI Dammam and Riyadh branches.
🛒 Explore more: https://hfi.com.sa/collections/tipping-cylinders-mh
