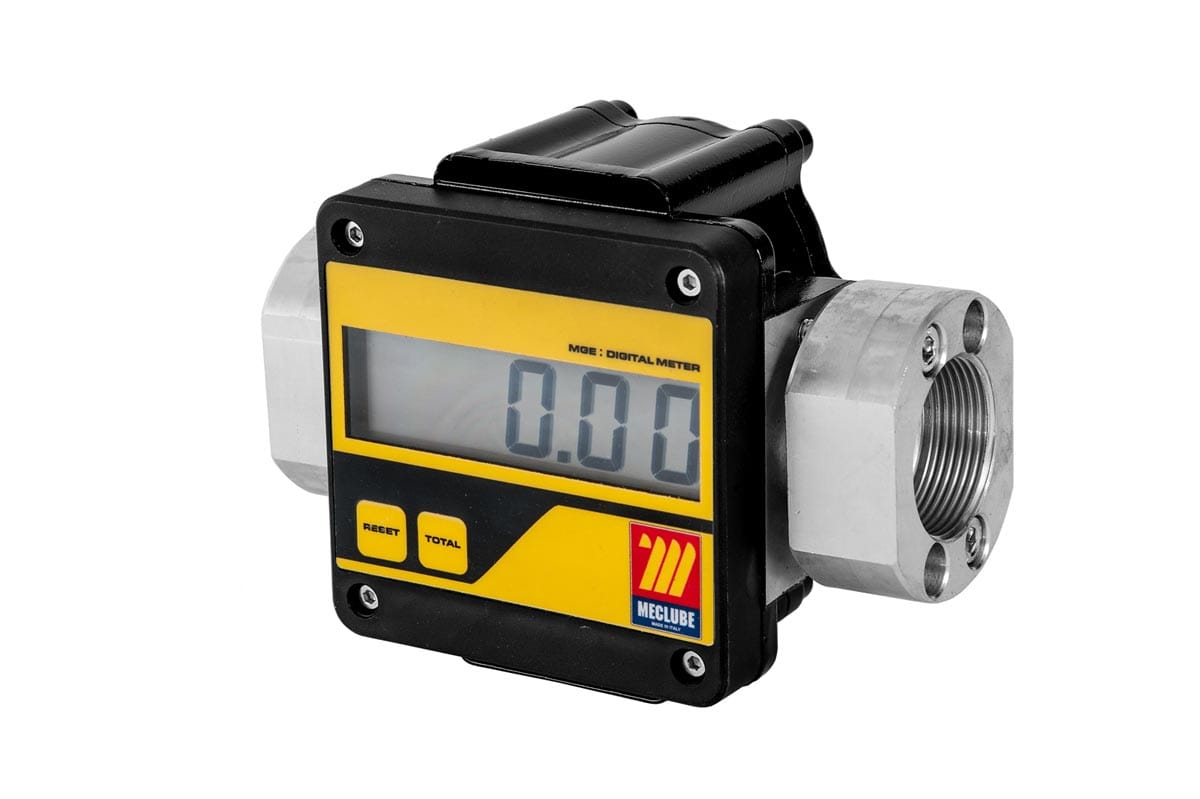

Digital Flow Meter : MGE 250

Electronic meter with aluminium measuring chamber, with high accuracy oval gears. Part number : 32503-CF+.

Technical data:

Flow (approx.):
10-250 l/min (diesel)
10-150 l/min (lubricant)
Tropicalised electronics
5-digit totalizer
It stores the litres of the last service.
Maximum pressure: 45 bar
Min./Max. temperature: -10 ºC / +50 ºC
Accuracy: ±0.5 %
Inlet/outlet connection connection: F1" or 1 1/2" (flange) (according to the model)
It is suitable for the lubricant measuring up to SAE-140 density.
Feeding by button battery of long duration
Low battery display
It has calibration parameters and stored litre totalizer on a PERMANENT MEMORY.
